[Users] GeoExt.grid.FeatureSelectionModel

[Minika Bjørge]

Hi,



I have 4 KML layers on my map and I have followed the Feature selection model to create 4 grid panels that sync with each of the layers (see screenshot).



However, I would like the grid panel to be visible only when the layer is selected i.e. the grid should be visible only for the active layer.  I don't know how to do this.  The way it is now, all the grid panel are expanded when the map loads. Is it possible to show the panel only when the layer is selected OR is it possible to expand the panel when the layer is selected (i.e. all the panels are collapsed by default)



I have looked at the LegendPanel example but I am still not clear how to make this work with the feature info in the grid panels.

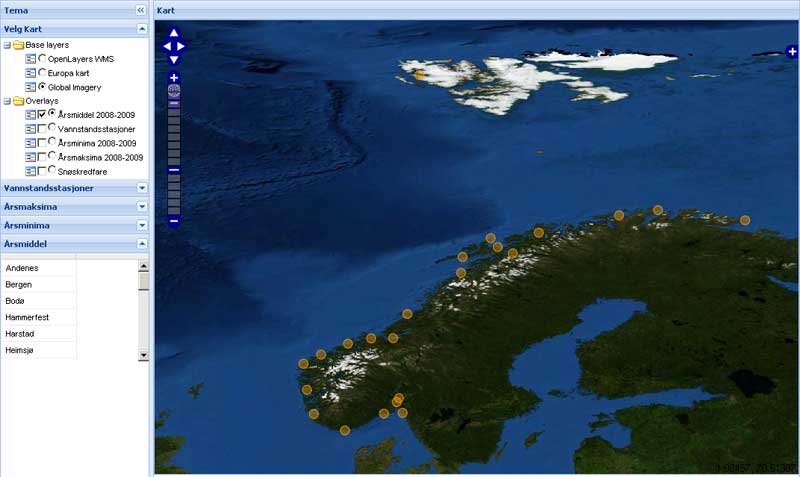

Here's a cut down version of my code and a screen shot(I have manually collapsed the grid panels):

//Add the layers to map

map.addLayer(layer2);

map.addLayer(europa);

map.addLayer(layer);

map.addLayer(layer3);



//KML layers

map.addLayer(aarsmaks);

map.addLayer(aarsmin);

map.addLayer(kmlLayer);

map.addLayer(middel);



//Map controls

map.addControl(new OpenLayers.Control.LayerSwitcher());

 map.addControl(new OpenLayers.Control.PanZoomBar());

 map.addControl(new OpenLayers.Control.MousePosition());



selectControl = new OpenLayers.Control.SelectFeature(

     [kmlLayer, aarsmaks, aarsmin, middel],

      {

            clickout: true, toggle: false,

              multiple: false, hover: false,

             toggleKey: "ctrlKey", // ctrl key removes from selection

             multipleKey: "shiftKey" // shift key adds to selection

       }

 );



map.addControl(selectControl);

selectControl.activate();



//Grid panel for KML layers

  store.load();

  store2.load();

  store3.load();

  store4.load();



  box= new Ext.grid.GridPanel({

         title: 'Vannstandsstasjoner',

         store: store,

         columns: [{heading: 'Sted', dataIndex: 'name'}],

         region: "west",

         width: 200,

         height: 170,

        border: false,

        collapsible: true,

        collapseMode: "mini",

       allowDrag: true,

         allowDrop: true,

         draggable: true,

        autoScroll: true,

        sm: new GeoExt.grid.FeatureSelectionModel()

      });



   box2= new Ext.grid.GridPanel({

         title: 'Årsmaksima',

         store: store2,

         columns: [{heading: 'Sted', dataIndex: 'name'}],

         region: "west",

         width: 200,

         height: 170,

       border: false,

     collapsible: true,

         collapseMode: "mini",

      allowDrag: true,

         allowDrop: true,

         draggable: true,

    autoScroll: true,

       sm: new GeoExt.grid.FeatureSelectionModel()

      });



       box3= new Ext.grid.GridPanel({

         title: 'Årsminima',

         store: store3,

         columns: [{heading: 'Sted', dataIndex: 'name'}],

         region: "west",

         width: 200,

         height: 170,

       border: false,

     collapsible: true,

         collapseMode: "mini",

      allowDrag: true,

         allowDrop: true,

         draggable: true,

      autoScroll: true,

     sm: new GeoExt.grid.FeatureSelectionModel()

      });



   box4= new Ext.grid.GridPanel({

         title: 'Årsmiddel',

         store: store4,

         columns: [{heading: 'Sted', dataIndex: 'name'}],

         region: "west",

         width: 200,

         height: 170,

       border: false,

     collapsible: true,

         collapseMode: "mini",

      allowDrag: true,

         allowDrop: true,

         draggable: true,

       autoScroll: true,

      sm: new GeoExt.grid.FeatureSelectionModel()

      });



//Map layout - north, west and center regions

          var viewport = new Ext.Viewport({

            layout:'border',

                width:880,

                height:610,

            items:[

                  {

                    region: 'west',  //contains the layer tree node and the feature grid for each layer

                    id: 'west-panel',

                    title: 'Tema',

                    width: 200,

                    minSize: 200-50,

                    maxSize: 200+50,

                    margins: '0 0 0 0',

                    collapsible: true,

                    collapseMode: 'mini',

                    border: true,

                   items: [tree,box,box2,box3,box4]

                 },{

                    region: 'center',  //contains the map

                    id: 'center-panel',

                   title: 'Kart',

                    margins: '0 0 0 5',

                    collapsible: false,

                     height:610,

                    border:true,

                    items: [mapPanel]

                 }]

  });





Many thanks for your help.



Minika Bjørge

Statens Kartverk Sjø

minika.bjorge at statkart.no



  <http://www.statkart.no/>
