[Users] configuring layers in geoexplorer

[Lemarchand, Johan]

Hi Tim,

Sorry to ask you again but I have used the GeoExplorer and I have an

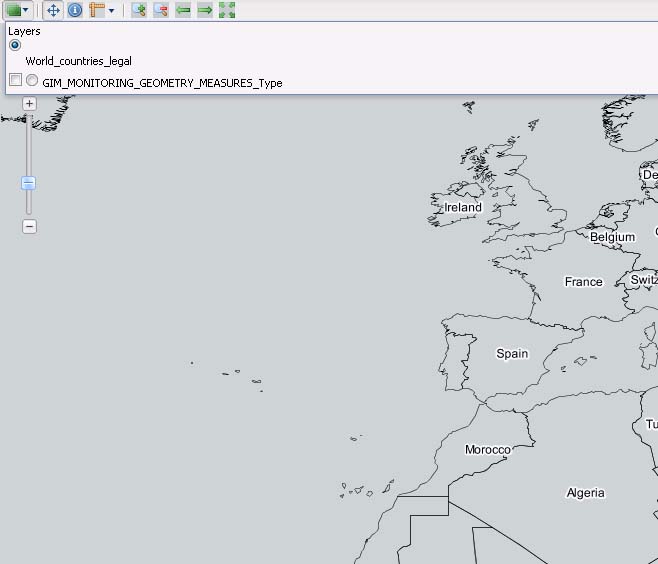

issue with the layers styles. When I run the application in IE 6, the
layers are displayed with a grey background as you can see in the
attached file. Do you have any idea why?

regards,
Johan


-----Original Message-----
From: users-bounces at geoext.org [mailto:users-bounces at geoext.org] On
Behalf Of Tim Schaub
Sent: 01 July 2009 02:59
Cc: Users at geoext.org
Subject: Re: [Users] configuring layers in geoexplorer

Hey-

Andreas Hocevar wrote:
> Hi Johan,
>
> On Tue, Jun 30, 2009 at 1:54 PM, Lemarchand,
Johan<lemarchandjo at who.int> wrote:
>> I have downloaded the latest release of GeoExplorer with the new
GeoExt.
>> I am trying to configure the layers added at the initialization of
the
>> application. It seems that the layers options such as the style,
format,
>> minScale, maxScale, etc... are not passed in when the application is
>> activated. Is it the correct way to initialize the GeoExplorer? Is it
>> covered in the current release or will it be covered later?
>
> Tthe correct way to configure GeoExplorer is to do it like in the
> example, i.e. only provide a layer name. The layer name has to
> correspond with a layer in the capabilities document that is loaded
> with GeoExplorer. Currently, all layers in GeoExplorer have to come
> from one WMS, i.e. information about all layers has to be in one
> capabilities document.

I should add that the latest "release" of the app is actually what you
get in the zip archive linked from this blog post:
http://blog.opengeo.org/2009/06/17/geoexplorer-preview/

This comes from the 0.1.x branch - not the trunk.

If you are trying out the app at the trunk, you can use more than one
OWS.  I'll be making another tag for 0.2 in a few days.  This tag will
come with some basic docs.

Tim

>
> Regards,
> Andreas.
>
>> <script>
>>   Ext.BLANK_IMAGE_URL = "theme/img/blank.gif";
>>   var app = new GeoExplorer.Embed({
>>   proxy: "/proxy/?url=",
>>   ows: {
>>        "demo": "http://demo.opengeo.org/geoserver/ows/"
>>   },
>>   map: {
>>         layers: [{
>>              name: "topp:states",
>>                  queryable: true,
>>                  formats: "image/gif",
>>                  styles: "polygon",
>>              ows: "demo",
>>              background: true,
>>              visibility:true
>>          },{
>>              name: "topp:bluemarble",
>>              ows: "demo",
>>              visibility: false,
>>              background: true
>>          }],
>>              center: [-96.7, 37.6],
>>              zoom: 4
>>           }
>>      });
>> </script>
>>
>> thanks in advance,
>> Johan Lemarchand
>> Public Health Information and GIS (GIS)
>> Health Statistics and Informatics (HSI)
>> Information Evidence and Research (IER)
>> World Health Organization
>> Tel: +41 22 791 1076
>> Mobile: +41 79 517 4205
>> Email: lemarchandjo at who.int
>>
>> _______________________________________________
>> Users mailing list
>> Users at geoext.org
>> http://www.geoext.org/cgi-bin/mailman/listinfo/users
>>
>
>
>


--
Tim Schaub
OpenGeo - http://opengeo.org
Expert service straight from the developers.
